Building Python Wheels

See also this document.

Linux wheels

In order to have NEURON binaries run on most Linux distros, we rely on the manylinux project. Current NEURON Linux image is based on manylinux_2_28.

Setting up Docker

Docker is required for building Linux wheels. You can find instructions on how to setup Docker on Linux here.

NEURON Docker Image Workflow

Linux wheel builds run inside neuronsimulator/neuron_wheel. GitHub Actions and Azure pull these tags from Docker Hub:

  • manylinux_2_28_x86_64

  • manylinux_2_28_aarch64

pyproject.toml sets those names (manylinux-x86_64-image and manylinux-aarch64-image).

Publish again after a change to packaging/python/Dockerfile has been reviewed and merged to master. The steps below build that file and push the two tags.

One-time: store the Docker Hub token

  1. Sign in as a Docker Hub user who can push neuronsimulator/neuron_wheel.

  2. Create a personal access token on that account.

  3. In the GitHub settings for neuronsimulator/nrn, under Actions, store:

    • variable DOCKERHUB_USERNAME: the Docker Hub user name

    • secret DOCKERHUB_TOKEN: the personal access token

When docker login asks for a password, paste the personal access token.

Publish from GitHub Actions

  1. On GitHub, open Actions → Build custom Docker image for manylinux wheels → Run workflow. Choose the master branch.

  2. Fill in the form:

    • The base Docker image to use: manylinux_2_28

    • Whether to upload (push) the image to the container registry: off

    • The name of the container registry: docker.io

    • The tag prefix for the final Docker image: leave empty

  3. Run the workflow. It builds x86_64 and aarch64 and does not push.

  4. Run it again with upload turned on.

The images are then:

  • docker.io/neuronsimulator/neuron_wheel:manylinux_2_28_x86_64

  • docker.io/neuronsimulator/neuron_wheel:manylinux_2_28_aarch64

A prefix is joined to the front of that tag with no extra character. An empty prefix produces the names above.

Build and push on your own machine

For x86_64:

cd nrn/packaging/python
docker build -t neuronsimulator/neuron_wheel:manylinux_2_28_x86_64 .
docker login --username=<dockerhub-username>
docker push neuronsimulator/neuron_wheel:manylinux_2_28_x86_64

For aarch64:

cd nrn/packaging/python
docker build -t neuronsimulator/neuron_wheel:manylinux_2_28_aarch64 --build-arg MANYLINUX_IMAGE=manylinux_2_28_aarch64 .
docker login --username=<dockerhub-username>
docker push neuronsimulator/neuron_wheel:manylinux_2_28_aarch64

The docker login password is the personal access token from the one-time steps.

To push a trial tag, change the name after the colon (for example manylinux_2_28_x86_64-test). The wheel build keeps using the two tags in pyproject.toml until you push those names.

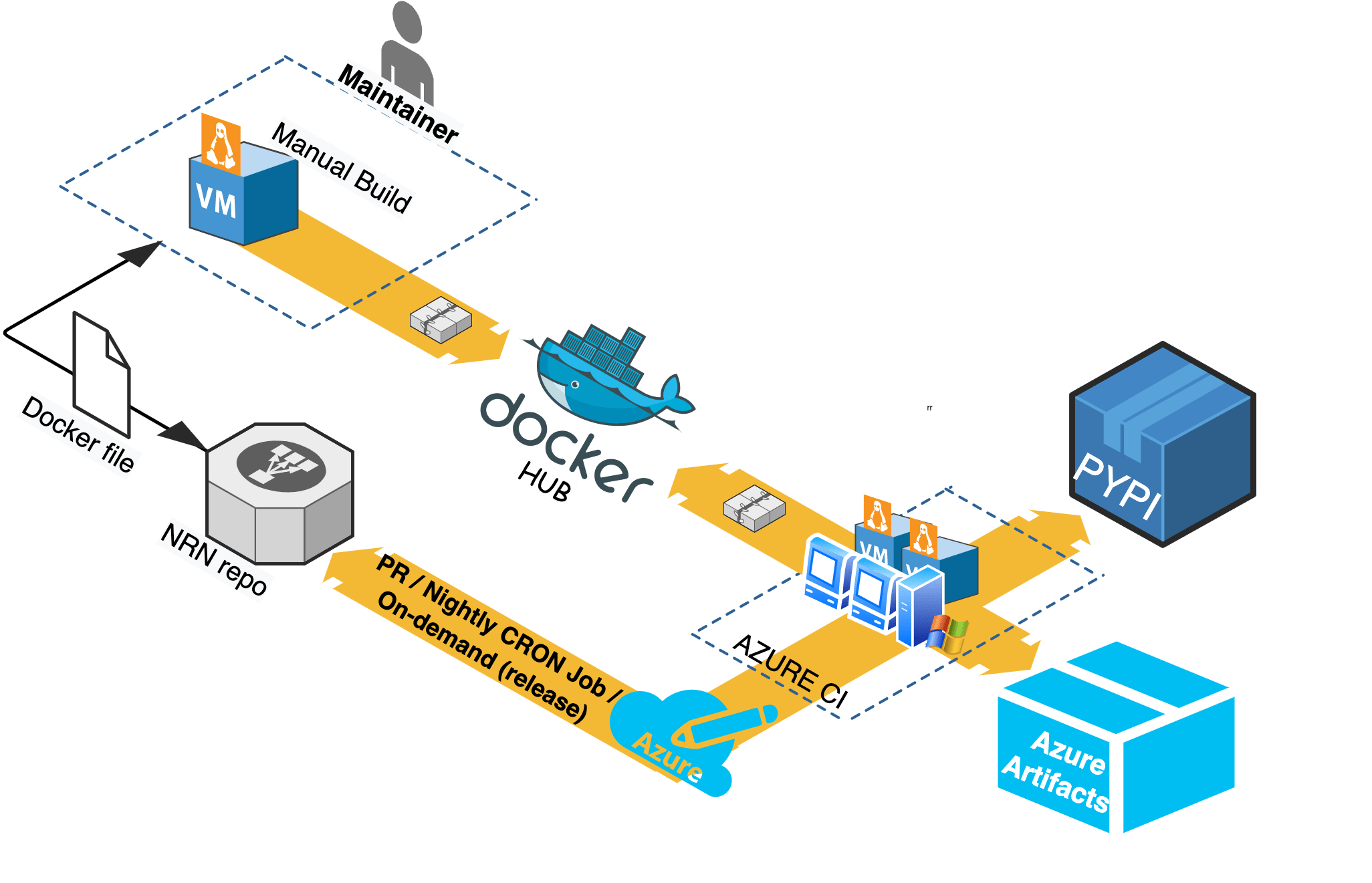

This figure is that laptop path: the Dockerfile, a maintainer machine, Docker Hub, then the Azure wheel jobs.

Pull the image

docker pull neuronsimulator/neuron_wheel:manylinux_2_28_x86_64

MPI support

The neuronsimulator/neuron_wheel provides out-of-the-box support for mpich and openmpi. For HPE-MPT MPI, since it’s not open source, they are provided automatically as part of Azure Pipelines and are not locally downloadable.

CI dependency archive (pinned downloads)

Wheel test jobs install both MPICH and OpenMPI so packaging/python/test_wheels.sh can exercise dynamic MPI. On Ubuntu 24.04, stock MPICH was broken (LP#2072338); CI therefore installs a pinned pair of .deb files from the dedicated CI-deps archive nrn-ci-deps / ci-deps-v1 instead of downloading them from Launchpad on every run (and instead of mixing pins into NEURON product Releases on nrn).

See CI dependency archive and ci/deps/README.md for:

  • the catalog (MANIFEST.yml) and managed: true|false

  • hosting on neuronsimulator/nrn-ci-deps

  • fetch.sh / install_mpich_noble.sh / publish.sh / check-upstream.sh

  • how to add the next flaky third-party download

Azure macOS wheels still obtain a prebuilt static readline via an Azure secure file (see macOS section below). Migrating that class of blob into ci/deps is tracked as managed: false in the MANIFEST until promoted.

macOS wheels

Note that for macOS there is no docker image needed, but all required dependencies must exist. In order to have the wheels working on multiple macOS target versions, special consideration must be made for MACOSX_DEPLOYMENT_TARGET.

Taking Azure macOS x86_64 wheels for example, readline was built with MACOSX_DEPLOYMENT_TARGET=10.9 and stored as secure file on Azure (under Pipelines > Library > Secure files). For arm64 we need to set MACOSX_DEPLOYMENT_TARGET=11.0.

You can use packaging/python/build_static_readline_osx.bash to build a static readline library. You can have a look at the script for requirements and usage.

Installing macOS prerequisites

Install the necessary Python versions by downloading the universal2 installers from https://www.python.org/downloads/macos/ You’ll need several other packages installed as well (brew is fine):

brew install --cask xquartz
brew install flex bison mpich cmake
brew unlink mpich && brew install openmpi
brew uninstall --ignore-dependencies libomp || echo "libomp doesn't exist"

Bison and flex installed through brew will not be symlinked into /opt/homebrew (installing it next to the version provided by OSX can cause problems). To ensure the installed versions will actually be picked up:

export BREW_PREFIX=$(brew --prefix)
export PATH=/opt/homebrew/opt/bison/bin:/opt/homebrew/opt/flex/bin:$PATH

Launch the wheel building

Linux

You can build the wheel for a specific Python version using:

bash packaging/python/build_wheels.bash linux 39    # 39 for Python v3.9

To build wheels with CoreNEURON support you have to set the environmental variable NRN_ENABLE_CORENEURON=ON:

NRN_ENABLE_CORENEURON=ON bash packaging/python/build_wheels.bash linux '3*'

where we are passing '3*' (note the quotes!) to build the wheels with CoreNEURON support for all python 3 versions.

By default, the build system uses all of the processing units available on a machine; this can be customized using the CMAKE_BUILD_PARALLEL_LEVEL environmental variable.

Note that using podman is supported, however, you must set the environmental variable CIBW_CONTAINER_ENGINE=podman before launching the build_wheels.bash script.

macOS

As mentioned above, for macOS all dependencies have to be available on a system. You have to then clone NEURON repository and execute:

cd nrn
bash packaging/python/build_wheels.bash osx 39  # 39 for Python v3.9

In some cases, setuptools-scm will see extra commits and consider your build as “dirty,” resulting in filenames such as NEURON-9.0a1.dev0+g9a96a3a4d.d20230717-cp310-cp310-macosx_11_0_arm64.whl (which should have been NEURON-9.0a0-cp310-cp310-macosx_11_0_arm64.whl). If this happens, you can set an environment variable to correct this behavior:

export SETUPTOOLS_SCM_PRETEND_VERSION=9.0a

Change the pretend version to whatever is relevant for your case.

Testing the wheels

There are two complementary approaches: a smoke script that ships with the packaging tree, and the foreign CTest harness that reuses a large portable subset of the developer suite against an installed wheel.

Smoke tests (test_wheels.sh)

Quick health check after building a wheel (or against TestPyPI):

# first arg is a python exe and second arg is the corresponding wheel
bash packaging/python/test_wheels.sh python3.9 wheelhouse/NEURON-7.8.0.236-cp39-cp39-macosx_10_9_x86_64.whl

# Or, you can provide the pypi url
bash packaging/python/test_wheels.sh python3.9 "-i https://test.pypi.org/simple/NEURON==7.8.11.2"

This covers import/neuron.test(), basic nrnivmodl, and a few MPI / CoreNEURON paths when available. It is intentionally smaller than a full developer ctest run.

Foreign CTest against a wheel (portable suite)

For broader coverage without rebuilding NEURON, configure the standalone project under test/foreign against a venv that has the wheel installed:

python3 -m venv .venv && source .venv/bin/activate
pip install -U pip pytest
# local wheel, or e.g. neuron-nightly from PyPI:
pip install path/to/NEURON-*.whl
# pip install neuron-nightly

# From the NEURON source tree (same revision as the wheel when possible):
cmake -S test/foreign -B build-ctest \
  -DNRN_FOREIGN_PYTHON="$(which python)" \
  -DNRN_FOREIGN_ALLOW_SKEW=ON   # only if source tip ≠ wheel revision

cmake --build build-ctest --target test-install -j
# default: build mechanisms + ctest -L serial

# Full ctest control against the foreign binary dir:
ctest --test-dir build-ctest -L mpi --output-on-failure -j2
ctest --test-dir build-ctest -L coreneuron --output-on-failure -j2

Notes:

  • Version policy defaults to a hard match between the wheel’s git identity and this source tree; use -DNRN_FOREIGN_ALLOW_SKEW=ON for exploratory runs (for example neuron-nightly vs a feature branch).

  • MPI tests register only if the wheel was built with MPI and mpiexec is on PATH at foreign configure time.

  • See test/foreign/README.md and test/foreign/INVENTORY.md for labels, dependencies (e.g. RxD plot packages), and what remains build-only (Catch2 unit tests, NMODL unit binaries, …).

The same foreign harness is used after a prefix install via the main build target test-install when NRN_ENABLE_TESTS=ON (see the CMake option documentation for NRN_ENABLE_TESTS).

MacOS considerations

On MacOS, launching nrniv -python or special -python can fail to load neuron module due to security restrictions. For this specific purpose, please export SKIP_EMBEDED_PYTHON_TEST=true before launching the tests (for test_wheels.sh).

Publishing the wheels on PyPI via GitHub Actions

Release wheels are built and published by the NEURON Release workflow, not Azure.

Workflow inputs

When you click Run workflow:

  • Use workflow from (controller) — which checkout provides release.yml. Use master for dry-run and ship.

  • rel_branch — the git ref whose sources are built (usually release/x.y).

  • rel_tag — the version name (x.y.z).

  • upload — false = dry-run, true = create the tag, attach artifacts to a GitHub pre-release, and publish wheels to PyPI.

Release wheels (dry-run, then ship)

  1. Open NEURON Release → Run workflow.

  2. Use workflow from: master.

  3. Set rel_branch to release/x.y (or the cherry-pick branch for a pre-merge smoke).

  4. Set rel_tag to x.y.z.

  5. Leave Python/OS lists at the defaults unless you are deliberately narrowing the matrix.

  6. Set upload to false and run. This builds and tests wheels, runs ModelDB CI and nrn-build-ci against this run’s merged wheels artifact, and builds the full-src package and Windows installer. It does not push a tag or upload to PyPI.

  7. Confirm neuron.__version__ is non-empty on a wheel from the artifact, and that ModelDB V2 used this run’s artifact URL (not a nightly fallback).

  8. If only ModelDB failed, retest without rebuilding wheels: ModelDB CI (reuse wheels). Pass the dry-run wheels artifact id or https://github.com/neuronsimulator/nrn/actions/artifacts/<id> URL, neuron_v1=neuron==<previous>, and modeldb_ci_ref=master.

  9. When the dry-run is green and rel_branch still points at the same SHA, run the same workflow again with upload=true.

Do not treat Azure NRN_RELEASE_UPLOAD as the release path.

Nightly wheels

Nightly wheels are published from master by wheels-nightly.yml on a schedule (and can be dispatched manually).

How to test GHA wheels locally

Download the merged wheels artifact from a NEURON Release or wheels-ci run, unzip it, and pass a .whl to packaging/python/test_wheels.sh.

How to test Azure wheels locally

Azure still publishes a drop zip for some PR/nightly builds. After retrieving the Azure drop URL (i.e. from the GitHub PR comment, or by going to Azure for a specific build):

python3 -m pip wheel neuron-gpu-nightly --wheel-dir tmp --find-links 'https://dev.azure.com/neuronsimulator/aa1fb98d-a914-45c3-a215-5e5ef1bd7687/_apis/build/builds/7600/artifacts?artifactName=drop&api-version=7.0&%24format=zip'

will download the wheel and its dependencies to tmp/ and then you can test it with:

./packaging/python/test_wheels.sh python3 ./tmp/NEURON_gpu_nightly-...whl true
