Building Python Wheels

Linux wheels

In order to have NEURON binaries run on most Linux distros, we rely on the manylinux project. Current NEURON Linux image is based on manylinux2014.

Setting up Docker

Docker is required for building Linux wheels. You can find instructions on how to setup Docker on Linux here.

NEURON Docker Image Workflow

When required (i.e. update packages, add new software), NEURON maintainers are in charge of updating the NEURON docker images published on Docker Hub under:

• neuronsimulator/neuron_wheel

• neuronsimulator/neuron_wheel_gpu

Azure pipelines pull this image off DockerHub for Linux wheels building.

Updating and publishing the public images are done by a manual process that relies on a Docker file (see packaging/python/Dockerfile and packaging/python/Dockerfile_gpu). Any official update of these files shall imply a PR reviewed and merged before DockerHub publishing.

All wheels built on Azure are:

• Published to Pypi.org as

  • neuron-nightly -> when the pipeline is launched in CRON mode

  • neuron-x.y.z -> when the pipeline is manually triggered for release x.y.z

  • additionally, for Linux only: neuron-gpu-nightly and neuron-gpu-x.y.z

• Stored as Azure artifacts in the Azure pipeline for every run.

Refer to the following image for the NEURON Docker Image workflow:

Building the docker image

After making updates to any of the docker files, you can build the image with:

cd nrn/packaging/python
# update Dockerfile
docker build -t neuronsimulator/neuron_wheel[_gpu]:<tag> .

where <tag> is:

• latest-x86_64 or latest-aarch64 for official publishing on respective platforms (after merging related PR)

• feature-name for updates (for local testing or for PR testing purposes where you can temporarily publish the tag on DockerHub and tweak Azure CI pipelines to use it - refer to Job: 'ManyLinuxWheels' or Job: 'ManyLinuxGPUWheels' in azure-pipelines.yml )

and _gpu is needed for the GPU wheel.

If you are building an image for AArch64 i.e. with latest-aarch64 tag then you additionally pass --build-arg argument to docker build command in order to use compatible manylinux image for ARM64 platform (e.g. while building on Apple M1 or QEMU emulation):

docker build -t neuronsimulator/neuron_wheel:latest-aarch64 --build-arg MANYLINUX_IMAGE=manylinux2014_aarch64 -f Dockerfile .

Pushing to DockerHub

In order to push the image and its tag:

docker login --username=<username>
docker push neuronsimulator/neuron_wheel[_gpu]:<tag>

Using the docker image

You can either build the neuron images locally or pull them from DockerHub:

$ docker pull neuronsimulator/neuron_wheel:latest-x86_64
Using default tag: latest-x86_64
latest: Pulling from neuronsimulator/neuron_wheel
....
Status: Downloaded newer image for neuronsimulator/neuron_wheel:latest
docker.io/neuronsimulator/neuron_wheel:latest-x86_64

We can conveniently mount the local NEURON repository inside docker, by using the -v option:

docker run -v $PWD/nrn:/root/nrn -w /root/nrn -it neuronsimulator/neuron_wheel:latest-x86_64 bash

where $PWD/nrn is a NEURON repository on the host machine that ends up mounted at /root/nrn. This is how you can test your NEURON updates inside the NEURON Docker image. Note that -w sets the working directory inside the container.

If you want to build wheels with GPU support via CoreNEURON, then you have to use the neuronsimulator/neuron_wheel_gpu image:

docker run -v $PWD/nrn:/root/nrn -w /root/nrn -it neuronsimulator/neuron_wheel_gpu bash

MPI support

The neuronsimulator/neuron_wheel provides out-of-the-box support for mpich and openmpi. For HPE-MPT MPI, since it’s not open source, you need to acquire the headers and mount them in the docker image:

docker run -v $PWD/nrn:/root/nrn -w /root/nrn -v $PWD/mpt-headers/2.21/include:/nrnwheel/mpt/include -it neuronsimulator/neuron_wheel:latest-x86_64 bash

where $PWD/mpt-headers is the path to the HPE-MPT MPI headers on the host machine that end up mounted at /nrnwheel/mpt/include. You can download the headers with:

git clone ssh://bbpcode.epfl.ch/user/kumbhar/mpt-headers

macOS wheels

Note that for macOS there is no docker image needed, but all required dependencies must exist. In order to have the wheels working on multiple macOS target versions, special consideration must be made for MACOSX_DEPLOYMENT_TARGET.

Taking Azure macOS x86_64 wheels for example, readline was built with MACOSX_DEPLOYMENT_TARGET=10.9 and stored as secure file on Azure (under Pipelines > Library > Secure files). For arm64 we need to set MACOSX_DEPLOYMENT_TARGET=11.0. The wheels currently need to be built manually, using universal2 Python installers. For upcoming universal2 wheels (targeting both x86_64 and arm64) we will consider leveling everything to MACOSX_DEPLOYMENT_TARGET=11.0.

You can use packaging/python/build_static_readline_osx.bash to build a static readline library. You can have a look at the script for requirements and usage.

Launch the wheel building

Linux

Once we’ve cloned and mounted NEURON inside Docker(c.f. -v option described previously), we can proceed with wheels building. There is a build script which loops over available pythons in the Docker image under /opt/python, and then builds and audits the generated wheels. Wheels are generated under /root/nrn/wheelhouse and also accessible in the mounted NEURON folder from outside the Docker image.

# Working directory is /root/nrn
bash packaging/python/build_wheels.bash linux
ls -la wheelhouse

You can build the wheel for a specific python version:

bash packaging/python/build_wheels.bash linux 38    # 38 for Python v3.8

To build wheels with GPU support you have to pass an additional argument:

• coreneuron : build wheel with CoreNEURON support

• coreneuron-gpu : build wheel with CoreNEURON and GPU support

bash packaging/python/build_wheels.bash linux 38 coreneuron-gpu

# or

bash packaging/python/build_wheels.bash linux 3* coreneuron

In the last example we are passing 3* to build the wheels with CoreNEURON support for all python 3 versions.

macOS

As mentioned above, for macOS all dependencies have to be available on a system. You have to then clone NEURON repository and execute:

cd nrn
bash packaging/python/build_wheels.bash osx

Testing the wheels

To test the generated wheels, you can do:

# first arg is a python exe and second arg is the corresponding wheel
bash packaging/python/test_wheels.sh python3.8 wheelhouse/NEURON-7.8.0.236-cp38-cp38-macosx_10_9_x86_64.whl

# Or, you can provide the pypi url
bash packaging/python/test_wheels.sh python3.8 "-i https://test.pypi.org/simple/NEURON==7.8.11.2"

MacOS considerations

On MacOS, launching nrniv -python or special -python can fail to load neuron module due to security restrictions. For this specific purpose, please export SKIP_EMBEDED_PYTHON_TEST=true before launching the tests.

Testing on BB5

On BB5, we can test CPU wheels with:

salloc -A proj16  -N 1 --ntasks-per-node=4 -C "cpu" --time=1:00:00 -p interactive
module load unstable python
bash packaging/python/test_wheels.sh python3.7 wheelhouse/NEURON-7.8.0.236-cp37-cp37m-manylinux1_x86_64.whl

The GPU wheels can be also tested in same way on the CPU partition. In this case only pre-compiled binaries like nrniv and nrniv-core are tested on the CPU. In order to test full functionality of GPU wheels we need to do the following:

• Allocate GPU node

• Load NVHPC compiler

• Launch test_wheels.sh

salloc -A proj16 -N 1 --ntasks-per-node=4 -C "volta" --time=1:00:00 -p prod --partition=prod --exclusive
module load unstable python nvhpc

bash packaging/python/test_wheels.sh python3 NEURON_gpu_nightly-8.0a709-cp38-cp38-manylinux_2_17_x86_64.manylinux2014_x86_64.whl

The test_wheels.sh will check if nvc/nvc++ compilers are available and run tests for hpe-mpi, intel-mpi and mvapich2 MPI modules. Also, it checks if GPU is available (using pgaccelinfo -nvidia command) and then runs a few tests on the GPU as well.

Similar to BB5, the wheel can be tested on any desktop system provided that NVHPC compiler module is loaded or appropriate PATH environment variable is setup.

Publishing the wheels on Pypi via Azure

Official Release wheels

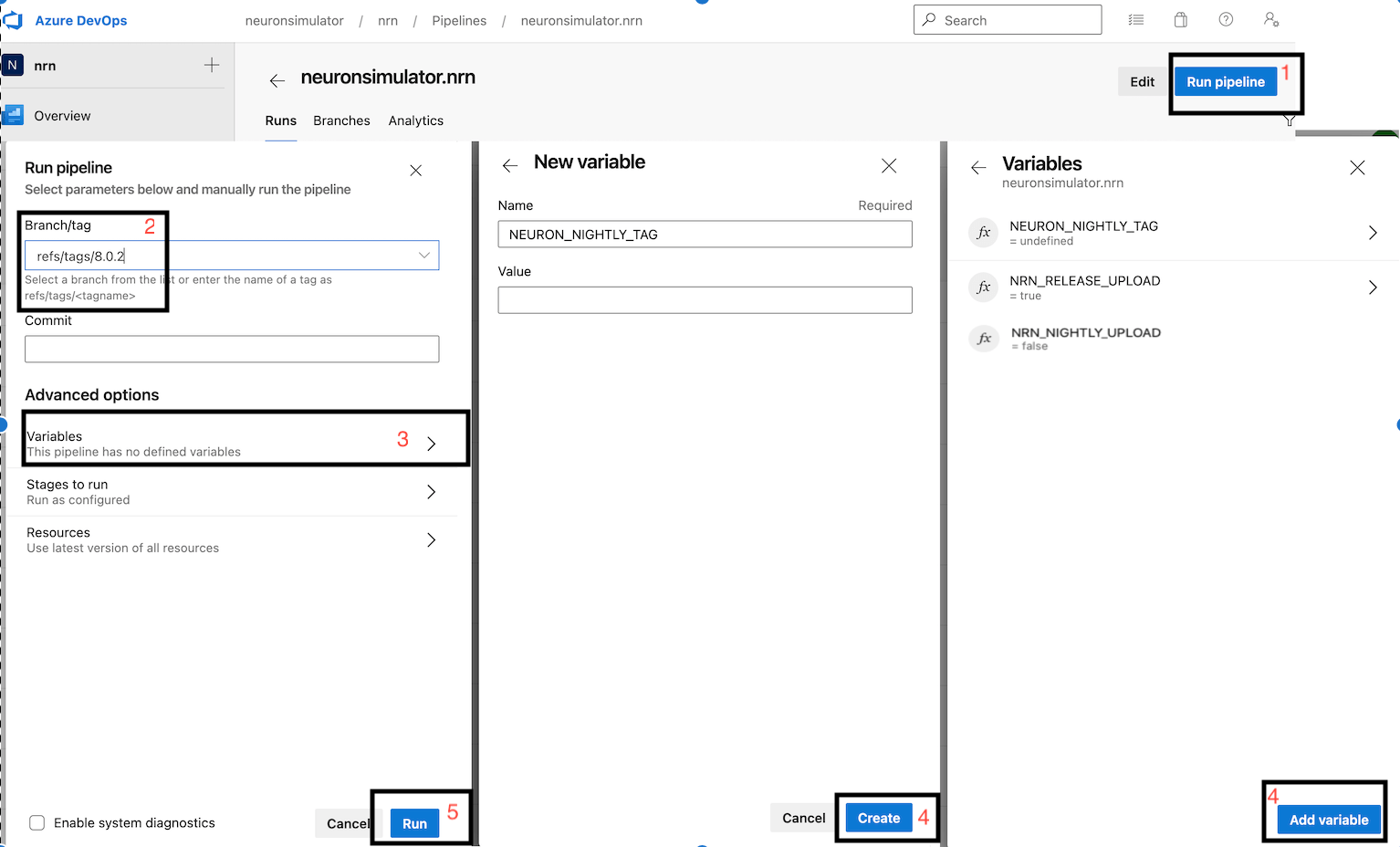

Head over to the neuronsimulator.nrn pipeline on Azure.

After creating the tag on the release/x.y or on the master branch, perform the following steps:

1. Click on Run pipeline

2. Input the release tag ref refs/tags/x.y.z

3. Click on Variables

4. We need to define three variables:

   • NRN_NIGHTLY_UPLOAD : false

   • NRN_RELEASE_UPLOAD : false

   • NEURON_NIGHTLY_TAG : undefined (leave empty)

   Do so by clicking Add variable, input the variable name and optionally the value and then click Create.

5. Click on Run

With above, wheel will be created like release from the provided tag but they won’t be uploaded to the pypi.org ( as we have set NRN_RELEASE_UPLOAD=false). These wheels now you can download from artifacts section and perform thorough testing. Once you are happy with the testing result, set NRN_RELEASE_UPLOAD to true and trigger the pipeline same way:

• NRN_NIGHTLY_UPLOAD : true

• NRN_RELEASE_UPLOAD : false

• NEURON_NIGHTLY_TAG : undefined (leave empty)

Publishing the wheels on Pypi via CircleCI

Currently CircleCI doesn’t have automated pipeline for uploading release wheels to pypi.org (nightly wheels are uploaded automatically though). Currently we are using a hacky, semi-automated approach described below:

• Checkout your tag as a new branch

• Update .circleci/config.yml as shown below

• Trigger CI pipeline manually for the nrn project

• Upload wheels from artifacts manually

# checkout release tag as a new branch
$ git checkout 8.1a -b release/8.1a-aarch64

# manually updated `.circleci/config.yml`
$ git diff

@@ -15,6 +15,10 @@ jobs:
     machine:
       image: ubuntu-2004:202101-01
+    environment:
+      NEURON_WHEEL_VERSION: 8.1a
+      NEURON_NIGHTLY_TAG: ""
+      NRN_NIGHTLY_UPLOAD: false
+      NRN_RELEASE_UPLOAD: false

@@ -89,7 +95,7 @@ workflows:
       - manylinux2014-aarch64:
           matrix:
             parameters:
-              NRN_PYTHON_VERSION: ["310"]
+              NRN_PYTHON_VERSION: ["37", "38", "39", "310"]

The reason we are setting NEURON_WHEEL_VERSION to a desired version 8.1a because setup.py uses git describe and it will give different version name as we are now on a new branch!

Nightly wheels

Nightly wheels get automatically published from master in CRON mode.
